Meet SAE J706 Hydraulic planetary winches EPHC 22500FN Back

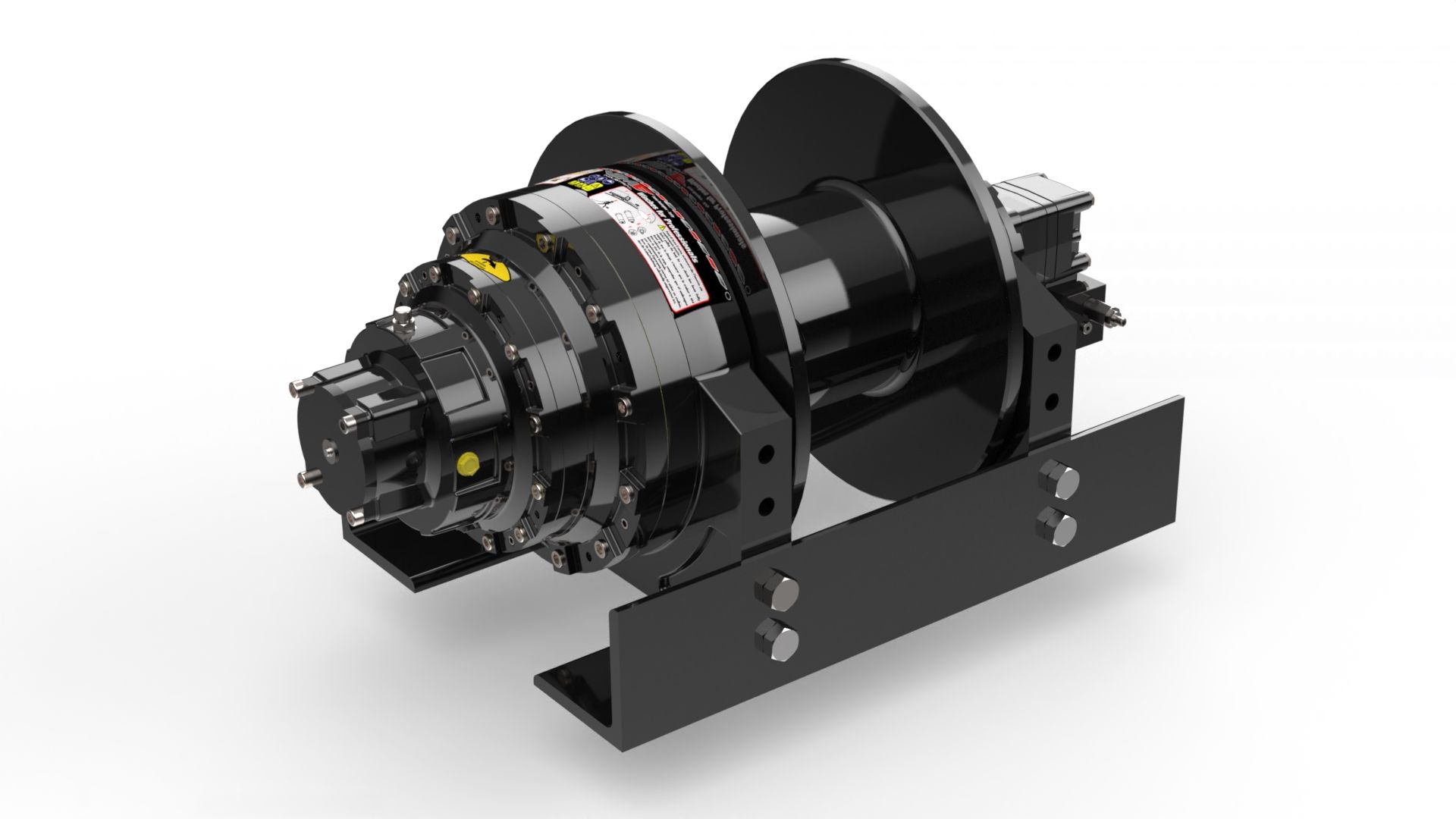

EPHC 22500FN

Model EPH FN are hydraulic planetary winches, designed for long life, offer safe duty.
These winches are built according with higher safety standards and meet SAE J706.
The high efficiency planetary gear train, assures fast payout and rewind winching operation.
The innovative brake system makes these winches reliable and great for industrial applications.





© copyright V.I.M.E. srl

All the projects of our devices and products are covered and protected by copyright V.I.M.E.
Beware of imitations and/or distributors or dealers not authorized, V.I.M.E. devices and products are exclusively conceived, projected, produced and assembled by V.I.M.E. in Italy.

  • Compact

Hardened steel three stages planetary gear train



  • Fast winching speed

Fast payout and rewind



  • Versatile mounting

Designed for either foot or side mounting



  • Strong

Body manufactured from hardened iron casting, for greater resistance



  • Multi-disc pressure released brake

Gives a reliable and effective full brake capacity



  • Drum sizes available

Short 255,8 mm (10.1 inch) EPHC 22500FN



  • Totally oil cooled

Gears and brake are bathed in oil for maximum performance, quiet operation and to extend internal components life span

  • Pulling capacity (first layer)

20.000 Kg. [44.092 Lbs.]



  • Working pressure

195 Bar [2,828 Psi]



  • Wire rope dia.

22/24 mm [- -]



  • Gear ratio

97,23:1



  • Max. wire rope capacity (EN 14492-1)

52/50 Mt. [171,0/164,0 Ft.] short drum EPHC 22500FN



  • Max. oil supply

75 Lt./Min. [19,81 GPM]



  • Max.speed line (first layer)

4,5 Mt./Min. [14,8 Ft./Min.]



  • Max.speed line (last layer)

7,7 Mt./Min. [25,3 Ft./Min.]



  • Weight w/o wire rope

420 Kg. [925,94 Lbs.] short drum EPHC 22500FN

Winches model EPH FN have been designed to be equipped with several accessories such as :



• Zinc plated Heavy-duty roller fairlead

is made up by 2 horizontal rollers and 2 vertical rollers, used for lateral pullings to avoid damages to the cable and to the vehicle where the winch is installed



• Zinc plated Cable tensioner

is used to keep cable tightened on the drum, while the winch is in the freespool mode



• Air Cable tensioner
is used to keep cable tightened on the drum, while the winch is in the freespool mode.
It delivers a strong and steady pressure in every layer



• Air-cltuch

For drum free spooling, (system works if air circuit is available)
