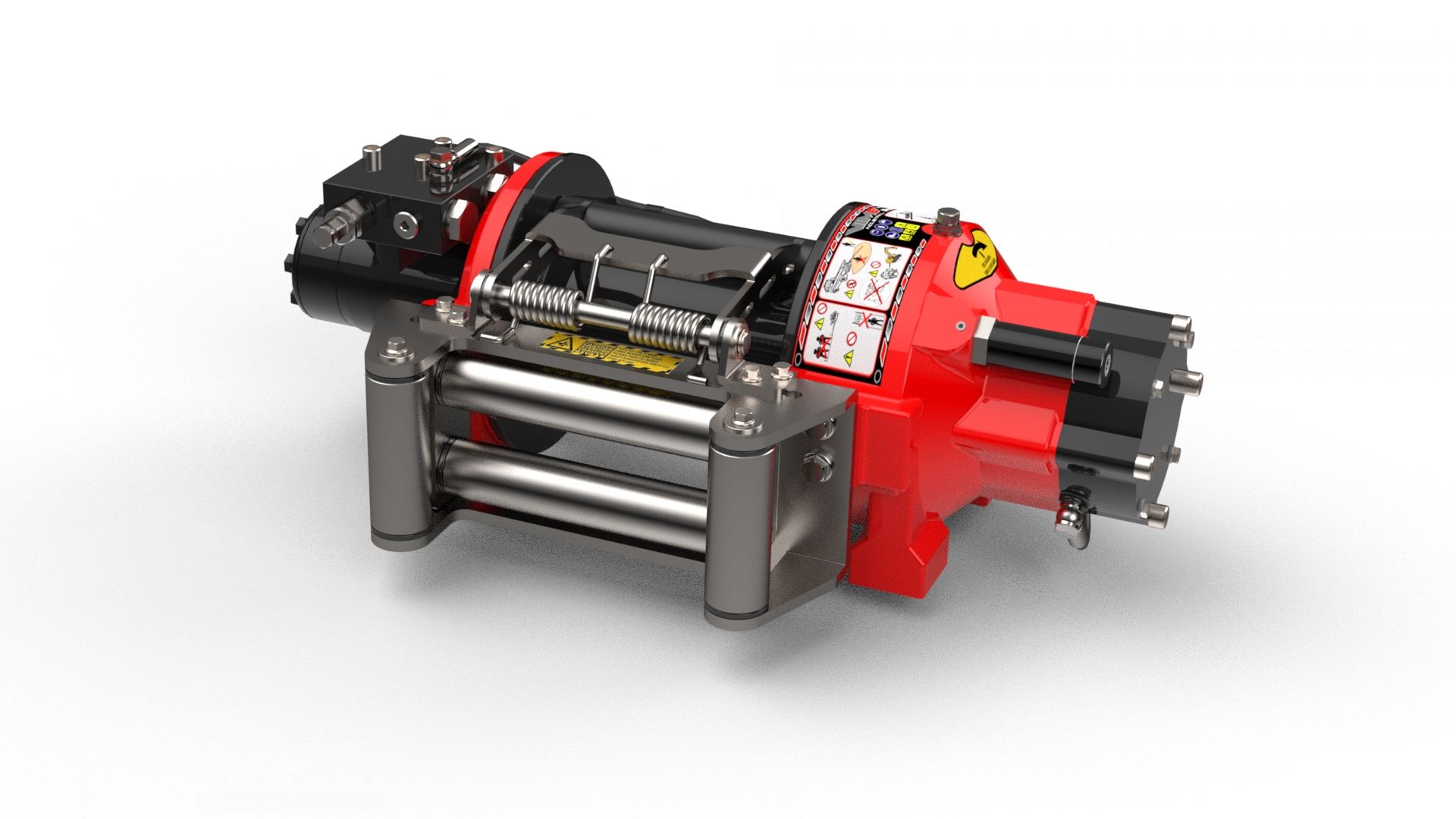

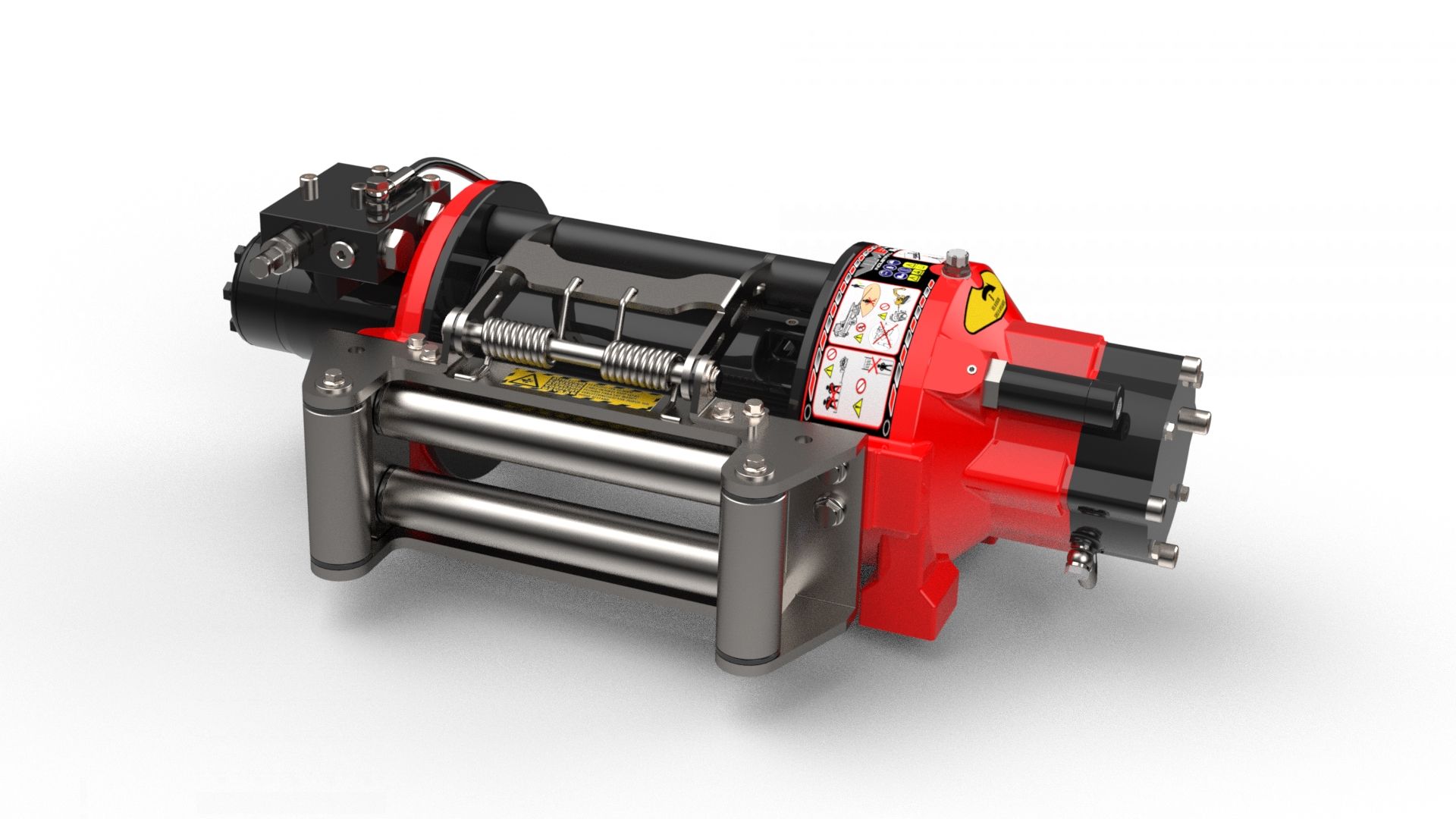

EPH 4500FN

Model EPHFN are hydraulic planetary winches, designed for long life, offer safe duty.
These winches are built according with higher safety standards in compliance with Directive Machinery 2006/42/CE Harmonized EN 14492-1.
The high efficiency planetary gear train, assures fast payout and rewind winching operation.
The innovative brake system makes these winches reliable and great for industrial applications.





© copyright V.I.M.E. srl

All the projects of our devices and products are covered and protected by copyright V.I.M.E.
Beware of imitations and/or distributors or dealers not authorized, V.I.M.E. devices and products are exclusively conceived, projected, produced and assembled by V.I.M.E. in Italy.

  • Compact

Hardened steel single stage planetary gear drive



  • Fast winching speed

Fast pay-out and rewind



  • Versatile mounting

Designed for either foot or side mounting



  • Light and strong

Body manufactured from hardened special aluminum castings, which reduces weight and increases strength.

Body powder coat finished



  • Multi-disc pressure released brake

Gives a reliable and effective full brake capacity



  • Drum clutch for free spooling

Manual clutch

Air clutch (optional accessory)



  • Drum sizes available

Short 200 mm (7.9 in) EPH/C 4500FN
Standard 252 mm (9.9 in) EPH 4500FN



  • Totally oil cooled

Gears and brake are bathed in oil for maximum performance, quiet operation and to extend internal components life span.

  • Pulling capacity (first layer)

4.500 Kgs. [10.000 Lbs.]



  • Working pressure

150 Bar [2,176 Psi]



  • Wire rope dia.

11 mm [- -]



  • Gear ratio

5,3:1



  • Max. wire rope capacity (EN 14492-1)

30 Mt. [98,4 Ft.] short drum EPH/C 4500FN

40 Mt. [131,2 Ft.] standard drum EPH 4500FN



  • Max. oil supply

60 Lt./Min. [15,85 GPM]



  • Max.speed line (first layer)

11,7 Mt./Min. [38,4 Ft./Min.]



  • Max.speed line (last layer)

20,8 Mt./Min. [68,2 Ft./Min.]



  • Weight w/o wire rope

46,7 Kgs. [103,00 Lbs.] short drum EPH/C 4500FN

47,9 Kgs. [105,60 Lbs.] standard drum EPH 4500FN

Winches model EPH FN have been designed to be equipped with several accessories such as :



• Zinc plated Heavy-duty roller fairlead

 is made up by 2 horizontal rollers and 2 vertical rollers, used for lateral pullings to avoid damages to the cable and to the vehicle where the winch is installed



• Zinc plated Cable tensioner

is used to keep cable tightened on the drum, while the winch is in the freespool mode



• Air-cltuch

For drum free spooling, (system works if air circuit is available)
