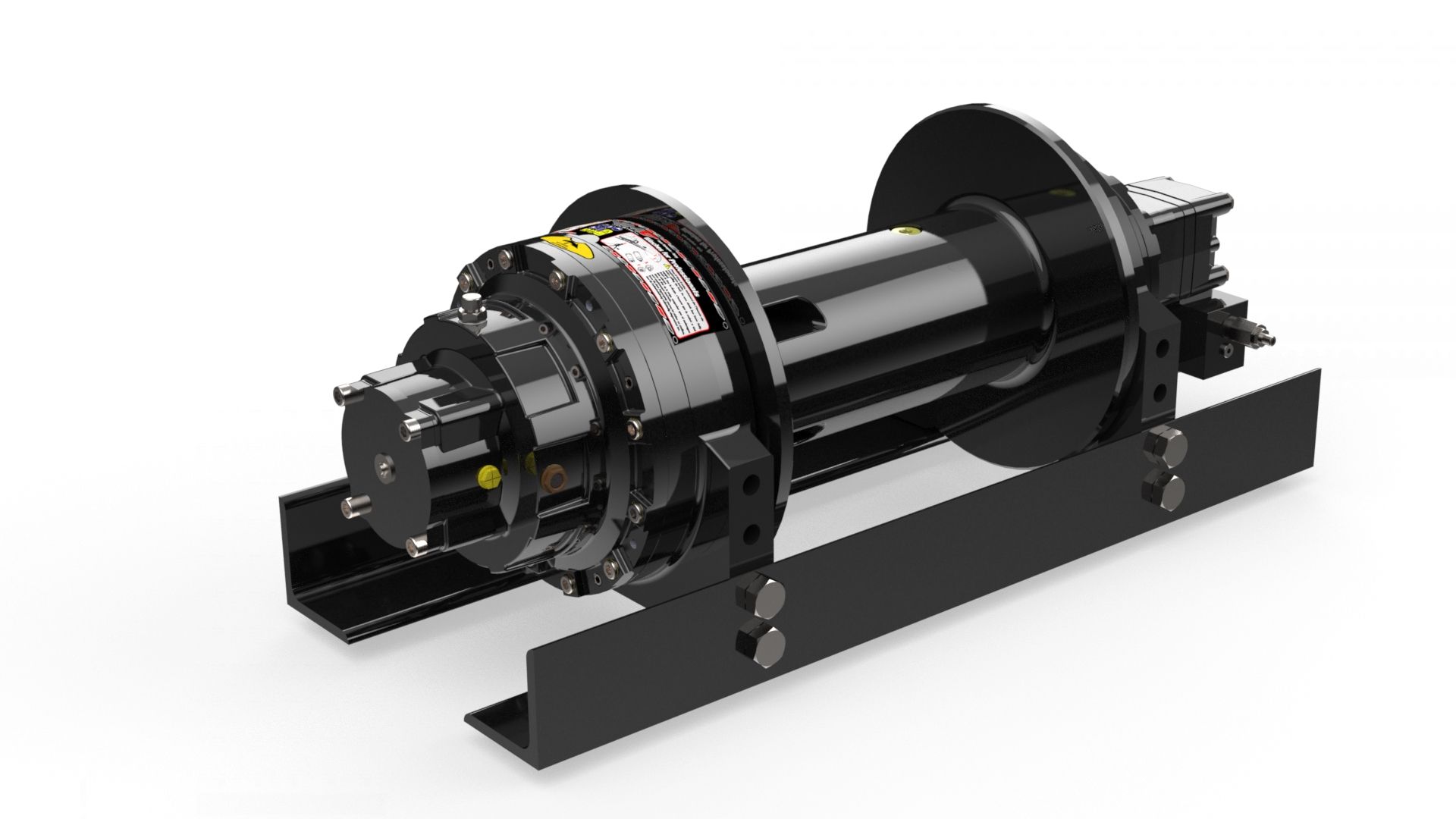

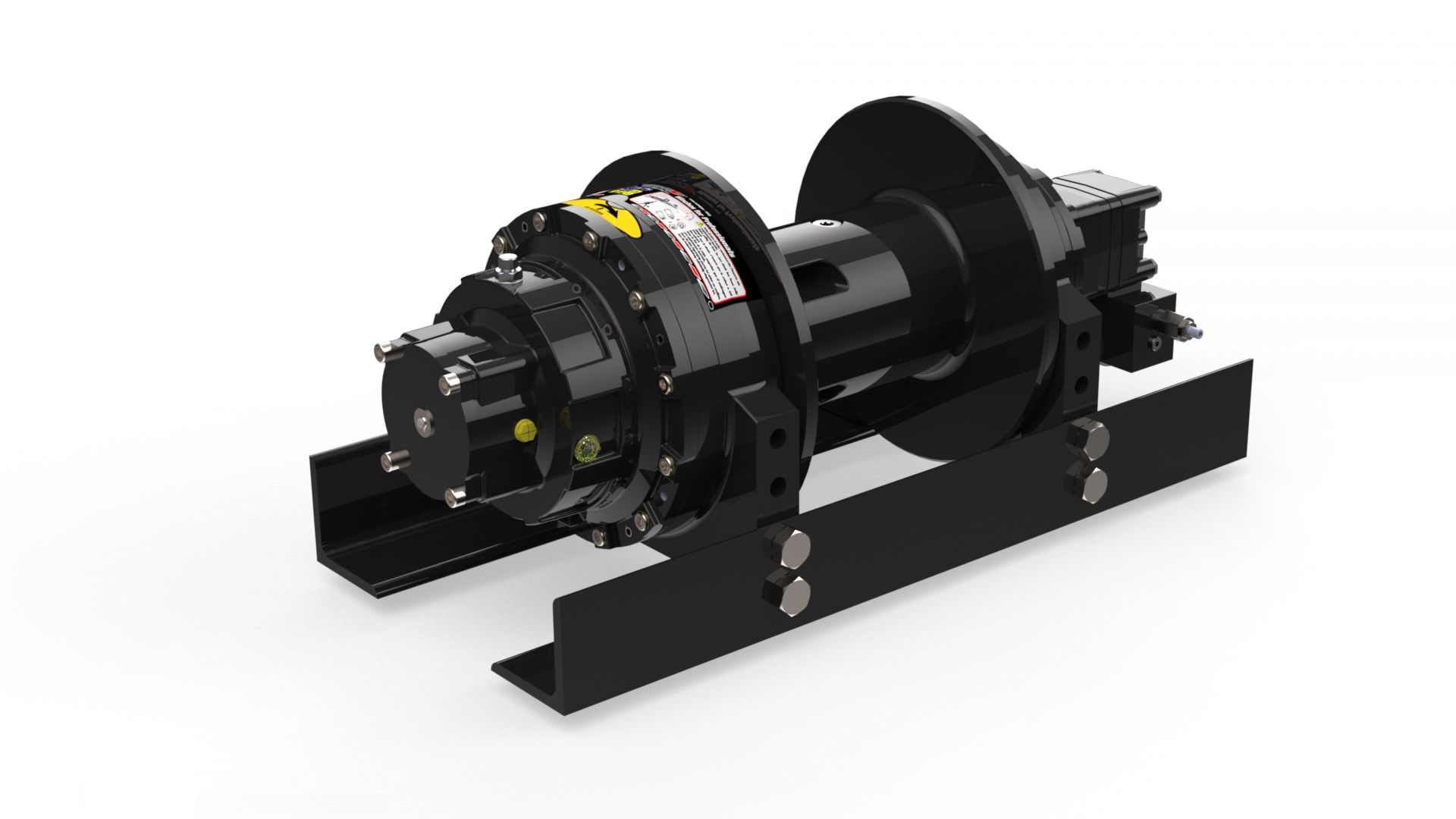

EPH 10000FN

Model EPH FN are hydraulic planetary winches, designed for long life, offer safe duty.
These winches are built according with higher safety standards and meet SAE J706.
The high efficiency planetary gear train, assures fast payout and rewind winching operation.
The innovative brake system makes these winches reliable and great for industrial applications.





© copyright V.I.M.E. srl

All the projects of our devices and products are covered and protected by copyright V.I.M.E.
Beware of imitations and/or distributors or dealers not authorized, V.I.M.E. devices and products are exclusively conceived, projected, produced and assembled by V.I.M.E. in Italy.

  • Compact

Hardened steel two stages planetary gear train



  • Fast winching speed

Fast payout and rewind



  • Versatile mounting

Designed for either foot or side mounting



  • Strong

Body manufactured from hardened iron casting, for greater resistance



  • Multi-disc pressure released brake

Gives a reliable and effective full brake capacity



  • Drum sizes available

Long 373 mm (14.7 inch) EPHL 10000FN
Short 255 mm (10.0 inch) EPHC 10000FN



  • Totally oil cooled

Gears and brake are bathed in oil for maximum performance, quiet operation and to extend internal components life span



  • Pulling capacity (first layer)

10.000 Kgs. [22.046 Lbs.]



  • Working pressure

200 Bar [2,901 Psi]



  • Wire rope dia.

15 mm / 16 mm [- -] / [- -]



  • Gear ratio

22,69:1



  • Max. wire rope capacity (SAE J706)

50/36Mt. [164,0/ 118,1 Ft.] short drum EPHC 10000FN

74/52Mt. [242,8/ 170,6 Ft.] tlong drum EPHL 10000FN



  • Max. wire rope capacity (EN 14492-1)

50/40Mt. [164,0/ 131,2 Ft.] short drum EPHC 10000FN

80/60Mt. [262,5/ 196,9 Ft.] tlong drum EPHL 10000FN



  • Max. oil flow

75 Lt./Min. [19,81 GPM]



  • Max.speed line(first layer)

11,1 Mt./Min. [36,4 Ft./Min.]



  • Max.speed line (last layer)

19,2 Mt./Min. [63,0 Ft./Min.]



  • Weight w/o wire rope

190 Kgs. [418,88 Lbs.] short drum EPHC 10000FN

200 Kgs. [440,93 Lbs.] long drum EPHL 10000FN

Winches model EPH FN have been designed to be equipped with several accessories such as :



• Zinc plated Heavy-duty roller fairlead

is made up by 2 horizontal rollers and 2 vertical rollers, used for lateral pullings to avoid damages to the cable and to the vehicle where the winch is installed



• Zinc plated Cable tensioner

is used to keep cable tightened on the drum, while the winch is in the freespool mode



• Air Cable tensioner
is used to keep cable tightened on the drum, while the winch is in the freespool mode.
It delivers a strong and steady pressure in every layer



• Air-cltuch

For drum free spooling, (system works if air circuit is available)
